Structural engineering faces a constant and demanding battle. Teams must maximize load capacity for towering modern structures. At the same time, they must aggressively reduce material weight and manage complex project constraints. Balancing these structural demands defines project success.
Modern construction no longer relies solely on traditional solid profiles like heavy open I-beams. The industry has decisively shifted toward optimized closed-section frameworks. These advanced profiles deliver smarter load distribution and incredible design flexibility. They allow architects and engineers to push structural limits further.

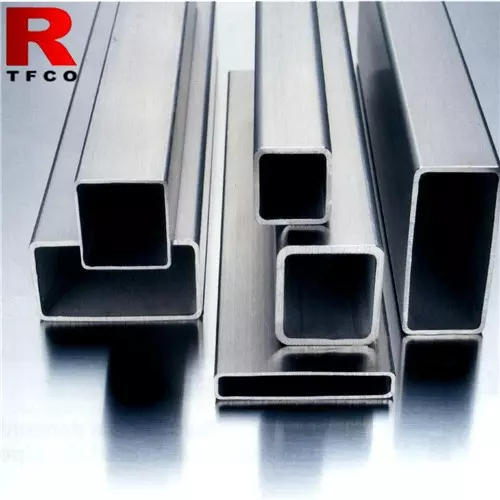

This article provides a comprehensive technical evaluation of Mild Steel Hollow Sections. You will discover the exact mechanics, structural benefits, and shape selection criteria. We will detail critical compliance standards and real-world implementation risks. This knowledge will equip your procurement and engineering teams to build smarter, safer, and highly optimized structures.
Mechanical Efficiency: Hollow profiles distribute material away from the neutral axis, delivering superior torsional rigidity and a higher strength-to-weight ratio than solid steel.
Shape-Specific Advantages: Circular (CHS), Rectangular (RHS), and Square (SHS) profiles serve distinct load-bearing, aerodynamic, and fabrication needs.
Cost & ESG Impact: Lighter dead loads reduce foundation requirements, lower crane lifting cycles, and decrease the project's overall carbon footprint.
Compliance Matters: Selecting between cold-formed and hot-finished manufacturing processes is critical for managing dynamic vs. static loads.
Solid steel profiles often waste material. In any bending scenario, structural stress peaks at the outer edges of a beam. Material near the center, known as the neutral axis, experiences almost zero stress. It contributes very little to bending resistance. It essentially acts as dead weight. Modern engineering solves this inefficiency completely. By utilizing Mild Steel Hollow Sections, you push the steel outward. This maximizes the radius of gyration. You achieve a significantly higher strength-to-weight ratio. You get maximum structural integrity using far less raw material.
Twisting forces destroy buildings and frameworks. Open sections, like standard angles or channel beams, struggle against these twisting forces. They warp easily under eccentric loads. Closed-loop hollow sections handle torsion beautifully. The continuous outer wall creates an uninterrupted path for shear flow. They resist twisting forces far better than equivalent open sections. This characteristic makes them ideal for structures in high-wind regions. They perform exceptionally well in seismic zones. Engineers consistently specify them when stability against unpredictable dynamic loads is paramount.
You can dramatically increase structural strength without changing the exterior footprint. You achieve this by filling hollow sections with concrete. This creates a powerful composite action. The steel shell acts as permanent formwork. It provides excellent tensile strength. It also confines the concrete core under pressure. The concrete core provides massive compressive load-bearing capacity. It simultaneously prevents the steel walls from buckling inward. This CFT approach allows designers to keep supporting columns extremely slender. It maximizes usable floor space in high-rise constructions.
Maintenance and surface protection demand massive resources. Open sections have multiple exposed faces, sharp internal corners, and hidden recesses. These "dead corners" complicate coating applications. A smooth, closed hollow surface eliminates these issues entirely. The streamlined profile has 20% to 30% less exposed surface area than a comparable open beam. You need significantly smaller volumes of anti-corrosive paint. You apply less fire-retardant coating. The lack of sharp edges ensures uniform coating thickness. This prevents premature coating failures and extends the structural lifespan.
Circular sections excel in specific architectural and industrial environments. They offer the lowest possible wind resistance. This aerodynamic property makes them the best choice for exposed frameworks. You frequently see them in offshore platforms, large roof trusses, and bridge construction. The smooth, sloped surface prevents water accumulation. Dirt and snow cannot easily build up on the structure. This natural shedding ability heavily reduces long-term corrosion risks.
Rectangular sections provide exceptional directional strength. They resist bending moments highly effectively along their deeper axis. This makes them the best option for floor joists and mechanical support frames. Flat surfaces allow for highly efficient end-cutting. Fabricators find them incredibly easy to weld. You can integrate straightforward bolted connections without complex profile coping. This simplicity accelerates factory fabrication and on-site assembly.
Square sections balance the best traits of both RHS and CHS. They offer uniform strength across both primary cross-sectional axes. This symmetry makes them the best candidate for vertical columns. They perform brilliantly in symmetrical grid structures. You get the multi-directional strength similar to a circular tube. Simultaneously, you retain the connection simplicity and flat-surface welding benefits of a rectangular tube.
Profile Type | Aerodynamic Performance | Fabrication & Connection Ease | Primary Engineering Use Case |
|---|---|---|---|
Circular (CHS) | Excellent (Lowest wind drag) | Complex (Requires profiling/coping) | Offshore platforms, bridges, exposed architectural frames |
Rectangular (RHS) | Moderate | Highly Efficient (Flat surfaces) | Floor joists, directional load supports, mechanical frames |
Square (SHS) | Moderate | Highly Efficient (Flat surfaces) | Vertical columns, symmetrical structural grids |
Manufacturing processes dictate how a section behaves under stress. You must choose the correct forming method. Cold-formed sections, manufactured to standards like EN 10219, are shaped at room temperature. They are highly precise and highly cost-effective. They suit standard building frameworks perfectly. However, cold forming induces internal stress at the corners. Hot-finished sections, following standards like EN 10210, are formed or heat-treated at elevated temperatures. This process relieves all internal manufacturing stresses. It delivers uniform grain structure. Hot-finished profiles are mandatory for structures facing high-frequency fatigue loads. You must use them for dynamic applications like cranes and heavy bridges.
Steel grade selection directly impacts structural safety. Common standards like AS1163 dictate specific yield strengths. A C250 grade indicates a minimum yield strength of 250 MPa. Equivalent ASTM or BS standards offer similar baselines. You must match the yield grade to the anticipated environmental exposure. Higher yield strengths allow for thinner walls. This reduces weight further. However, higher-strength steels may require specialized welding procedures. Always verify the chemical composition. Ensure the carbon equivalent value (CEV) supports your planned welding methods.
Strict quality control prevents catastrophic structural failures. Procurement teams must scrutinize material documentation before accepting deliveries. Establish a rigorous verification protocol. Do not rely solely on visual inspections.
Verify Dimension Uniformity: Check outer dimensions, corner radii, and straightness against strict standard tolerances.
Review Tensile and Impact Data: Demand Material Test Reports (MTRs). Confirm yield strength and Charpy V-notch impact test results.
Assess Weld-Seam Integrity: Request non-destructive testing (NDT) reports. Look for ultrasonic or electromagnetic flaw detection on the longitudinal weld seam.
Confirm Wall Thickness Variance: Ensure the material does not fall below the absolute minimum allowable thickness across the entire length.
Lighter superstructures fundamentally alter early-stage project requirements. The high strength-to-weight ratio of hollow sections significantly reduces the total dead load. This reduction transfers directly into the ground. Engineers can design less complex, shallower foundation systems. Smaller foundations require less concrete and less excavation. Beyond the foundation, lighter steel dramatically optimizes logistics. Transport trucks can carry more volume per trip before hitting highway weight limits. This streamlines the entire supply chain and drops freight requirements.
Time dictates project success. Heavy solid beams demand massive, slow-moving cranes. Lighter hollow materials require fewer heavy-crane lift cycles. You can maneuver them faster on the job site. The uniform flat shapes of RHS and SHS facilitate highly rapid assembly. Welders spend less time preparing joints. Steel erectors align the clean edges quickly. This compound speed accelerates the entire critical path of the construction schedule.
Fire rating compliance usually slows down project completion. Applying exterior intumescent paint requires strict climate control and long curing times. Hollow sections offer an inherent alternative. You can fill the interior voids with concrete. This composite filling acts as a massive heat sink. It absorbs thermal energy during a fire. It keeps the outer steel shell cooler for much longer. This method can provide the necessary fire resistance ratings inherently. It frequently eliminates the need for expensive, time-consuming exterior fire-retardant coatings entirely.
Modern building codes demand sustainable material choices. Mild steel ranks among the most recycled materials on the planet. It boasts a 100% recyclability rate at the end of its structural life. It never loses its core physical properties during recycling. Furthermore, the immense weight reduction lowers the carbon footprint associated with project freight. Fewer delivery trucks mean fewer emissions. Specifying hollow sections directly aligns your project with aggressive Environmental, Social, and Governance (ESG) targets.
Hollow sections hide potential dangers inside their voids. Internal corrosion poses a massive risk if poorly managed. If fabricators do not fully seal or cap the tube ends, the interior remains exposed. Moisture from condensation or rain will accumulate inside the structure. This trapped water reacts with atmospheric oxygen. It causes hidden structural degradation. The steel rusts from the inside out. Structural failure can occur before any external warning signs appear. You must ensure all exposed ends are hermetically sealed during fabrication.
Welding closed profiles demands specific expertise. Open profiles allow welders to access both sides of a joint easily. Hollow sections restrict access to the outside only. You must employ single-sided welding techniques. Achieving full penetration welds requires excellent joint detailing. Fabricators must use precise beveling. They must often employ backing rings for critical connections. Poorly executed single-sided welds leave internal root defects. These defects act as stress concentrators and invite fatigue cracking under heavy loads.
Procurement teams often hunt for lower prices. Budget suppliers sometimes manipulate dimensional tolerances to save raw material. They might supply sections near the absolute negative limit of wall thickness. This happens frequently on larger sizes like 400x200mm RHS or heavy 12mm walls. A 10% reduction in wall thickness drastically alters the cross-sectional area. It ruins the structural load calculations provided by your engineer. Always measure incoming batches precisely. Hold suppliers strictly accountable to international tolerance standards.
Common Mistakes to Avoid:
Failing to specify hot-finished sections for bridges or crane girders.
Ignoring the need for internal galvanizing in high-humidity environments.
Allowing open, unsealed tube ends on exterior architectural frameworks.
Relying on nominal wall thickness without checking actual delivered dimensions.
Mild steel hollow sections represent far more than a simple material choice. They deliver a strategic structural solution. They actively impact project logistics, factory fabrication time, and lifecycle durability. By moving steel away from the neutral axis, these profiles maximize strength and minimize dead weight. They enable architects to design elegant, soaring structures. They allow engineers to conquer complex load challenges safely.
Success depends on making informed choices early in the design phase. Engineers and procurement managers must align heavily. You must match the exact profile shape to your specific load directions. You must choose between cold-formed and hot-finished standards based on static versus dynamic stresses. You must coordinate protective coating requirements before material arrives on site. Clear communication prevents costly delays.
Take proactive steps to optimize your next structural design. Consult directly with a licensed structural engineer early in your planning phase. Request specific load tables to compare hollow versus solid beam efficiency. Contact a certified steel distributor to review material test reports (MTRs) for your upcoming project. Smart material selection today guarantees a stronger, safer structure tomorrow.
A: Solid beams contain unused material near their neutral axis. This dead weight does not resist bending forces. Hollow sections remove this inefficient center. They push material to the outer edges. This drastically improves the strength-to-weight ratio and provides superior torsional stiffness.
A: Yes. You must apply appropriate protective coatings. Hot-dip galvanizing and industrial powder coating defend the exterior. Crucially, you must weld end-caps onto all exposed openings. This seals the interior void and prevents internal moisture accumulation and hidden rust.
A: SHS (Square) offers symmetrical strength for vertical columns. RHS (Rectangular) provides strong directional load support and flat surfaces for easy welding. CHS (Circular) delivers multi-directional strength and optimal aerodynamics, making it ideal for wind-exposed frameworks.
A: It creates composite action. The steel provides tensile strength and securely confines the concrete core. The concrete prevents the steel walls from buckling inward under pressure. Together, they exponentially increase the compressive load-bearing capacity without increasing the column's physical size.
