Modern construction demands a precise balance. You must merge structural integrity and architectural aesthetics while protecting procurement budgets. Choosing the wrong steel profile can quickly derail project timelines. It introduces severe fabrication bottlenecks and compromises regional compliance standards. Structural engineers face constant pressure today. They must select shapes and grades perfectly suited for specific multi-directional loads. This article delivers a comprehensive technical and commercial evaluation framework. We guide you through selecting circular profiles over alternative shapes. You will learn to mitigate complex manufacturing risks effectively. We also show you how to validate supplier specifications accurately. We cover everything from mapping international steel grades to designing critical joint configurations. Read on to master the structural nuances of these essential building materials. You will ensure your next high-profile building project succeeds flawlessly.
Evaluate load multi-directionality: Circular profiles excel in torsional and wind-load resistance compared to square or rectangular counterparts.
Prioritize Class 1 through Class 3 stocky sections in structural design to avoid the premature yield failure risks associated with Class 4 slender components.
Cross-reference international steel grades (ASTM, EN, GB) accurately to ensure supply chain flexibility without compromising structural compliance.
Account for fabrication realities: Factor in gap versus overlap joint configurations in truss designs to control welding complexity and project timelines.
The global steel market offers many structural profiles. Engineers constantly analyze the Circular Hollow Sections Steel Tube RHS SHS tube selection to determine the optimal fit for load-bearing frameworks. Structural load dynamics strictly dictate your primary choice. Each geometric shape behaves differently under physical stress.
Circular Hollow Sections (CHS) provide uniform strength across all structural axes. They are superior for torsional loading scenarios. High towers and exposed structural columns rely heavily on CHS. The curved surface drastically reduces aerodynamic drag. This makes circular profiles ideal for structures facing extreme wind shear. Torsional forces distribute evenly across the continuous circular wall. You avoid the stress concentrations common in angular shapes.

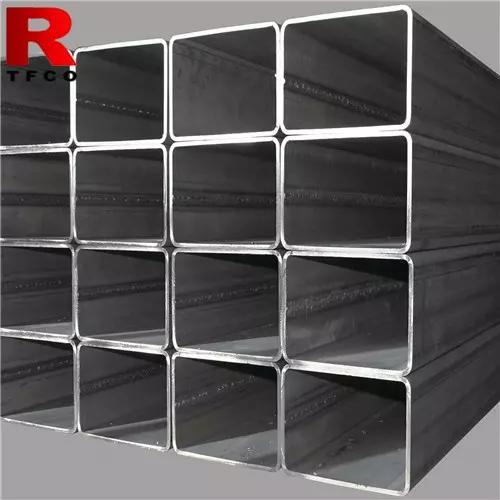

Square Hollow Sections (SHS) and Rectangular Hollow Sections (RHS) offer higher bending strength for specific directional loads. Their geometry allows them to carry heavier centralized loads along a single axis. Flat surfaces require less edge preparation before joining. Fabricators can weld SHS and RHS elements directly together. They avoid the complex saddle-cutting required for circular tubes.
Weight versus strength ratios matter immensely in large-scale projects. CHS eliminates corner material accumulation. This geometry yields a naturally lighter overall structure. It easily outperforms SHS and RHS profiles of similar dimensions. Lighter structures reduce heavy transport fees. They also lower foundational reinforcement requirements significantly.
Aesthetic alignment also plays a crucial role in modern architecture. CHS delivers seamless, prominent visual lines. Exposed frameworks benefit greatly from this clean, sweeping look. Airports, stadiums, and pedestrian bridges frequently showcase circular columns. Conversely, SHS and RHS lean heavily toward modular framing. Builders use them mostly in concealed structural bays or industrial racking systems.
Feature / Profile | CHS (Circular) | SHS (Square) | RHS (Rectangular) |
|---|---|---|---|
Load Dynamics | Multi-directional, excellent torsion resistance | Symmetrical bending, good axial compression | High uni-directional bending strength |
Fabrication Complexity | High (requires multi-axis profiling) | Low (straight cuts and standard welding) | Low (straight cuts and standard welding) |
Aesthetic Appeal | High (seamless, modern, exposed) | Moderate (industrial, rigid) | Moderate (industrial, concealed) |
Weight Efficiency | Excellent (no corner material buildup) | Good (corner accumulation adds weight) | Good (efficient for specific axis loads) |
Structural integrity depends on strict adherence to design class limitations. Engineers classify structural steel profiles based on their susceptibility to local buckling. You must specify "stocky" design classes. We strongly recommend using Class 1, Class 2, or Class 3 sections. These components can reach full yield strength safely. They absorb immense pressure before any elastic deformation occurs. Plastic hinges can form naturally in Class 1 sections. This provides essential flexibility during seismic events.
You must actively avoid Class 4 risks in load-bearing scenarios. Class 4 components feature extremely thin walls compared to their overall diameter or width. These slender tubes risk catastrophic buckling under compression. They routinely collapse before reaching their theoretical material capacity. Restrict Class 4 usage strictly to non-load-bearing architectural elements. Examples include ornamental facades or lightweight guardrails.
Designing efficient steel trusses requires practical guidelines. Following established rules of thumb prevents costly over-engineering. It also ensures fabrication remains manageable.
Height-to-Length Ratios: Utilize the standard mathematical rule where the height (h) equals 1/15 of the total length (L). This specific formula ensures highly economical structural height planning. It balances material usage against necessary bending stiffness.
Weight Distribution Baseline: Anticipate material volumes accurately during early procurement phases. Expect approximately 50% of the total truss weight to reside in the compression chords. Tension chords generally consume about 30% of the material. The internal bracing diagonals account for the remaining 20%. This baseline helps you forecast material costs rapidly.
Joint Connections: Evaluate the structural trade-off between gap and overlap configurations. Gap joints leave a small space between bracing members at the main chord. They offer easier tube cutting and straightforward welding. Overlap joints interlock the bracing members directly. They provide higher design resistance. However, overlap joints demand highly complex profiling. They slow down fabrication and require specialized welding skills.
Global procurement requires meticulous attention to material standards. Specifying the correct Circular Hollow Sections Steel Tube RHS SHS tube material ensures global compliance and structural safety. You must navigate differing regional codes carefully. Failure to cross-reference grades accurately leads to severe inspection failures.
Map required yield strengths accurately when sourcing materials globally. Equivalent performance baselines exist across different international markets. For standard structural applications, the Chinese GB Q235B aligns closely with the European EN S235JR and the American ASTM A36. These grades offer excellent ductility and easy weldability.
High-yield requirements introduce new engineering challenges. Grades like European S355 and S420, or the American ASTM A572 Gr.50, significantly increase load capacity. They allow you to design thinner, lighter structures. However, these high-strength materials demand specialized welding procedures. The carbon equivalent value rises in these alloys. Welders must pre-heat the joints to prevent hydrogen cracking. These materials also require higher upfront expenditure.
Performance Level | Chinese Standard (GB) | European Standard (EN) | American Standard (ASTM) |
|---|---|---|---|
Standard Yield (~235 MPa) | Q235B | S235JR | A36 / A500 Gr.A |
Medium Yield (~275 MPa) | Q275B | S275JR | A500 Gr.B |
High Yield (~355 MPa) | Q355B | S355JR / S355J2 | A572 Gr.50 / A500 Gr.C |
Never accept steel profiles without proper documentation. Demand verifiable mill test certificates (MTCs) for every batch. These documents validate the exact wall thickness (t) and outside diameter (D). They also detail the precise chemical composition of the steel heat. Ensuring compliance with local structural codes remains non-negotiable. European projects rely on EN 10210 for hot-finished profiles and EN 10219 for cold-formed ones. North American projects generally specify ASTM A500. Rigorous MTC review prevents substandard steel from entering your construction site.
Protecting steel from aggressive environments ensures long-term structural viability. Engineers must plan for both internal and external threats.
Hollow sections face unique vulnerabilities. They risk severe internal moisture accumulation. Temperature fluctuations cause internal condensation. Without intervention, water pools at the bottom of the structure and corrodes the steel from the inside out. You must specify capped ends to seal the tube completely. Welding end-plates shuts off oxygen and stops internal rusting. Alternatively, you can design targeted drainage holes. Place these small apertures at the lowest structural points. They allow condensation to escape naturally based on the project environment.
Surface treatments dictate the durability of your framework. You must choose coatings based on expected environmental exposure.
Bare/Black Annealed: This finish offers the lowest initial cost. The mill ships the steel without protective coatings. It requires extensive on-site priming and painting. We recommend this option strictly for fully encased frameworks. It works well for indoor applications in climate-controlled buildings.
Galvanized (Hot-Dipped/Pre-galvanized): This approach requires higher initial capital expenditure. However, it drastically lowers lifecycle maintenance requirements. Hot-dip galvanizing immerses the steel in molten zinc. This creates a metallurgical bond. The zinc layers provide rugged physical barriers against transport abrasion. They also offer sacrificial anodic protection. Rust attacks the zinc before it damages the steel core. This finish ensures exceptional seaworthiness for marine and offshore engineering projects.
Translating theoretical designs into physical structures uncovers hidden manufacturing risks. Understanding how mills produce hollow sections protects your project timeline.
Architects sometimes request highly unusual profile sizes. If non-standard dimensions require manufacturing, mills often rely on cold-drawing. They pull a standard circular mother tube through a specialized die. This process forcibly crushes the tube into a distinct shape or custom diameter. You must be acutely aware of circumferences mismatch.
If the mother tube possesses insufficient circumference, the resulting corners become excessively rounded. If the circumference is too large, the excess material bunches at the corners. This causes severe work hardening. Improper drawing processes alter the molecular structure of the steel. They lead to microscopic corner cracking and a dangerous loss of ductility. The steel becomes brittle. Overcoming this requires expensive post-weld annealing treatments. Heat treatment relieves the internal stresses but adds weeks to fabrication schedules.
Smart engineering embraces standardization. Base your project specifications strictly on readily available, standard mill output dimensions. Do not invent custom profile sizes unless absolutely necessary. Standard sizes run continuously on global production lines. They guarantee consistent metallurgical properties. This strategy eliminates custom-run lead times completely. It also drastically reduces processing risks and ensures competitive bidding among multiple suppliers.
Selecting the right steel profile requires methodical analysis. You must weigh physical load demands against supply chain realities.
Shortlisting Logic: Always match the physical profile shape to the dominant load type. Use circular shapes for extreme torsion and square shapes for centralized bending. Verify the chosen design class against strict yield requirements to prevent buckling. Finally, select robust surface treatments based on the project's exact environmental exposure.
Next-Step Action: Consult with your structural engineers immediately to finalize all joint designs. Commit to either gap or overlap configurations before ordering material. Engage certified suppliers with exact grade-equivalent requirements mapping your local standards. Request precise quoting, MTC validation, and realistic delivery lead times to secure your supply chain.
A: I-beams are optimal for heavy, centralized, unidirectional bending loads. You see them frequently used as main floor girders. Hollow sections outperform I-beams in multi-directional load bearing environments. They offer vastly superior torsion resistance. They also excel in exposed architectural applications where aesthetic visual lines matter deeply.
A: Prevention relies on two proven engineering methods. You can fully seal the tube via welded caps. This cuts off oxygen and moisture completely. Alternatively, you can engineer specific drainage holes. Place them at the absolute lowest structural points. This prevents condensation buildup and internal water pooling entirely.
A: Generally, yes. The flat surfaces of SHS and RHS allow for straightforward straight-line welding. Fabricators use standard techniques effortlessly. You avoid the complex saddle-cutting required to join circular tubes at an angle. Multi-axis profiling machinery is largely unnecessary when fabricating square or rectangular frameworks.
