The H frame and ladder frame scaffolding system serves as a critical temporary platform, delivering unyielding support for crews conducting elevated work. Crafted from heavy-duty industrial steel, these frameworks provide a rigid, secure foundation that feels incredibly stable underfoot, eliminating the sway often associated with inferior temporary structures. A standard set comprises two primary main frames, two precision-engineered cross braces, and four solid joint pins, creating a cohesive unit ready for immediate deployment. Our manufacturing facility specializes in a variety of protective surface treatments tailored to your specific environmental demands. Whether you require the smooth, weather-resistant finish of pre-galvanized and electro-galvanized coatings, or the thick, protective barrier of painted and powder-coated options, these systems are built to resist rust and degradation. The tactile coldness of the treated steel reassures users of its structural integrity, making it an indispensable asset for exterior facade repairs, interior renovations, and extensive decorative projects.
Name | Specification | Unit Weight kg/pc |
H Frame Main tube: 42*2.2mm Inner tube: 25*1.8mm Pre-galvanized steel tube | 1219*1700mm | 15.04 |
1219*1219mm | 11.96 | |
1219*914mm | 9.65 | |
H Frame Main tube: 42*2.2mm Inner tube: 25*2.0mm Pre-galvanized steel tube | 1219*1700mm | 15.28 |
1219*1219mm | 12.10 | |
1219*914mm | 9.69 | |
H Frame Main tube: 42*2.2mm Inner tube: 25*1.5mm Pre-galvanized steel tube | 1219*1700mm | 14.68 |
1219*1219mm | 11.75 | |
1219*914mm | 9.59 |
Exceptional Load-Bearing Capacity: Beyond the precise specifications detailed above, this scaffolding system is engineered for structural superiority. The scientific H-shaped mechanical design, combined with strategically placed cross braces, delivers an outstanding weight capacity of up to 300 kg/m². This ensures that the elevated work platform remains rock-solid, even when supporting multiple workers and heavy construction materials simultaneously.
Assembly Efficiency: The system is designed with rapid deployment in mind. Utilizing a highly intuitive modular design paired with a quick-lock pin mechanism, erection and dismantling processes require no specialized tools. The satisfying metallic 'click' of the joint pins locking into place provides immediate auditory confirmation of a secure connection. This streamlined setup significantly reduces on-site labor hours, accelerating project timelines.
Every component of our scaffolding undergoes an exacting manufacturing protocol, starting with the selection of premium steel. The raw materials are subjected to precise cutting and automated welding, resulting in smooth, uniform joints that leave no sharp edges or weak points. To combat harsh outdoor environments, the steel is treated through advanced anti-corrosion processes. The resulting surface features a uniform, protective layer that repels moisture and prevents oxidation, drastically extending the operational lifespan of the equipment.
Throughout the production cycle, strict adherence to international construction safety standards is maintained. Each batch is tested for structural resilience and weight distribution. The resulting frames support the seamless integration of anti-slip walking boards, heavy-duty base jacks, and secure guardrails. This comprehensive approach to manufacturing guarantees that the final product not only meets regulatory compliance but provides a fail-safe environment for personnel operating at demanding heights.

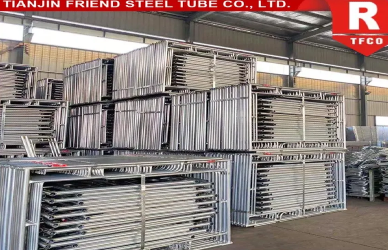

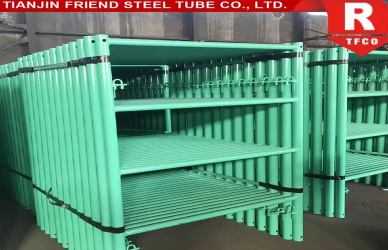

Compact Stacking Design: Efficient logistics are just as crucial as the product's physical integrity. Our scaffolding systems utilize a highly compact, interlocking stacking design for packaging. By nesting the H frames and ladder frames tightly together, we eliminate wasted gaps, maximizing the internal volume of standard shipping containers.
Secure Transit: This strategic approach to packing significantly drives down cross-border transportation costs. Each bundle is firmly secured with heavy-duty steel banding and protective wrapping, preventing metal-to-metal friction and scratching during transit. When the container doors open upon arrival, the distinct scent of fresh, protective oil on the galvanized steel confirms that the cargo has remained pristine. The organized bundles also facilitate rapid, safe unloading using standard forklifts, ensuring the materials arrive at your storage facility in flawless condition.
The versatility of this scaffolding infrastructure makes it an ideal solution across a wide spectrum of construction and maintenance environments. By offering various frame specifications—including door-type, ladder-type, single-width, and double-width configurations—the system adapts effortlessly to diverse spatial constraints.
For exterior applications, it provides a dependable platform for facade painting, masonry work, and large-scale architectural cladding. Indoors, its maneuverability shines during ceiling installations, drywall finishing, and intricate decorative projects. Furthermore, industrial facilities frequently rely on these stable frameworks for routine equipment maintenance and overhead inspections. The adaptability of the components ensures that regardless of the project's complexity or location, crews have access to a safe, reliable, and easily reconfigurable working elevation.
